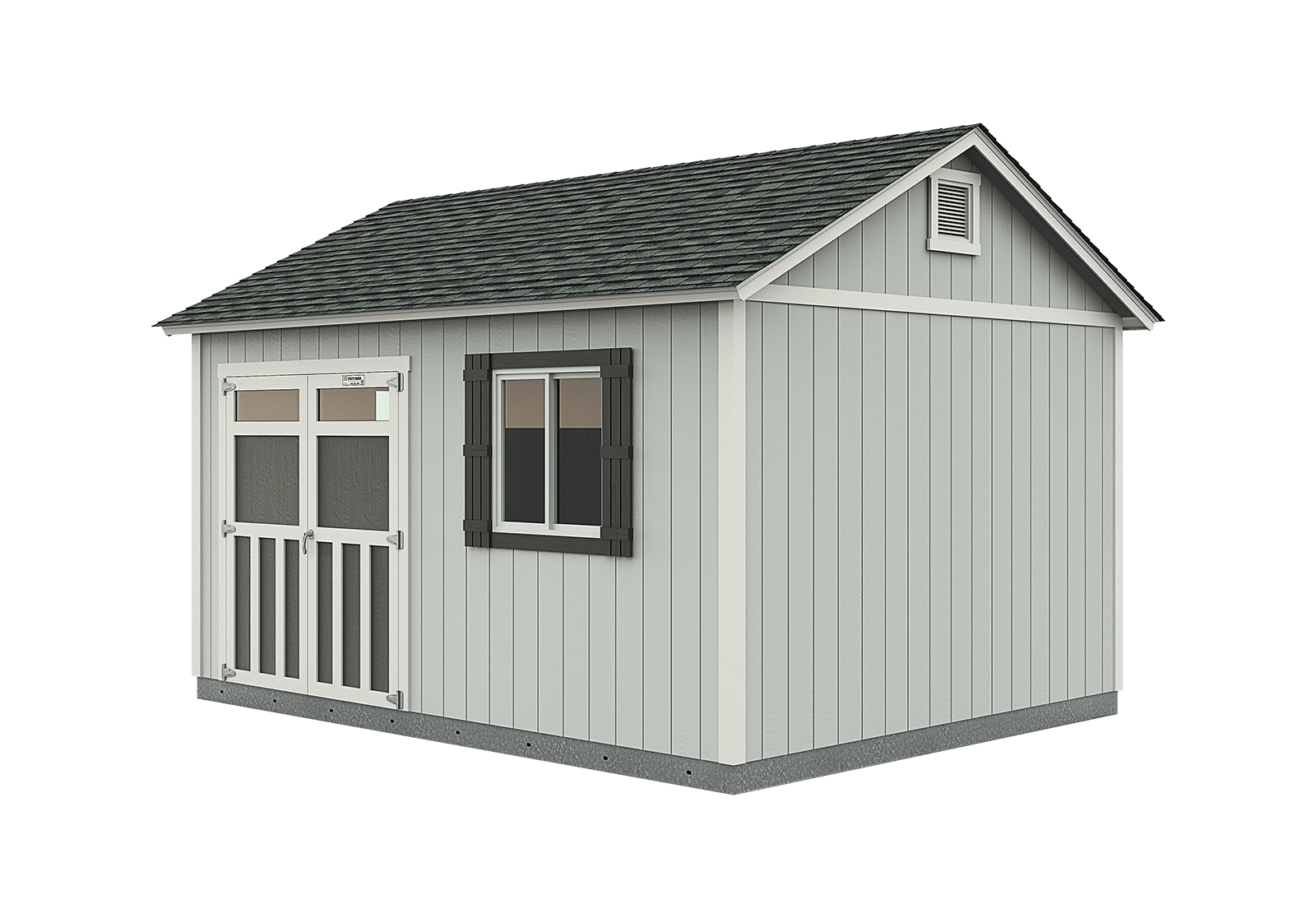

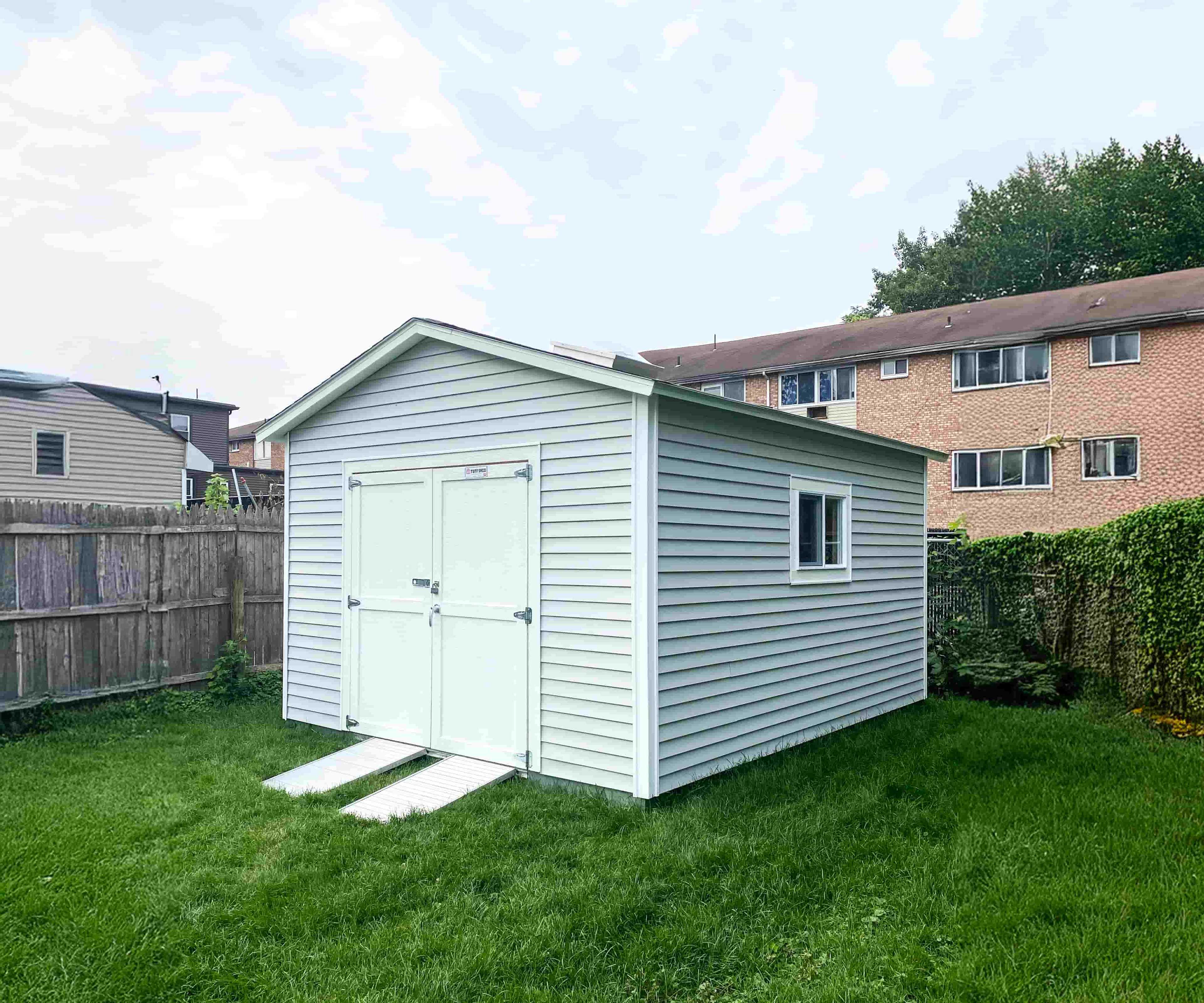

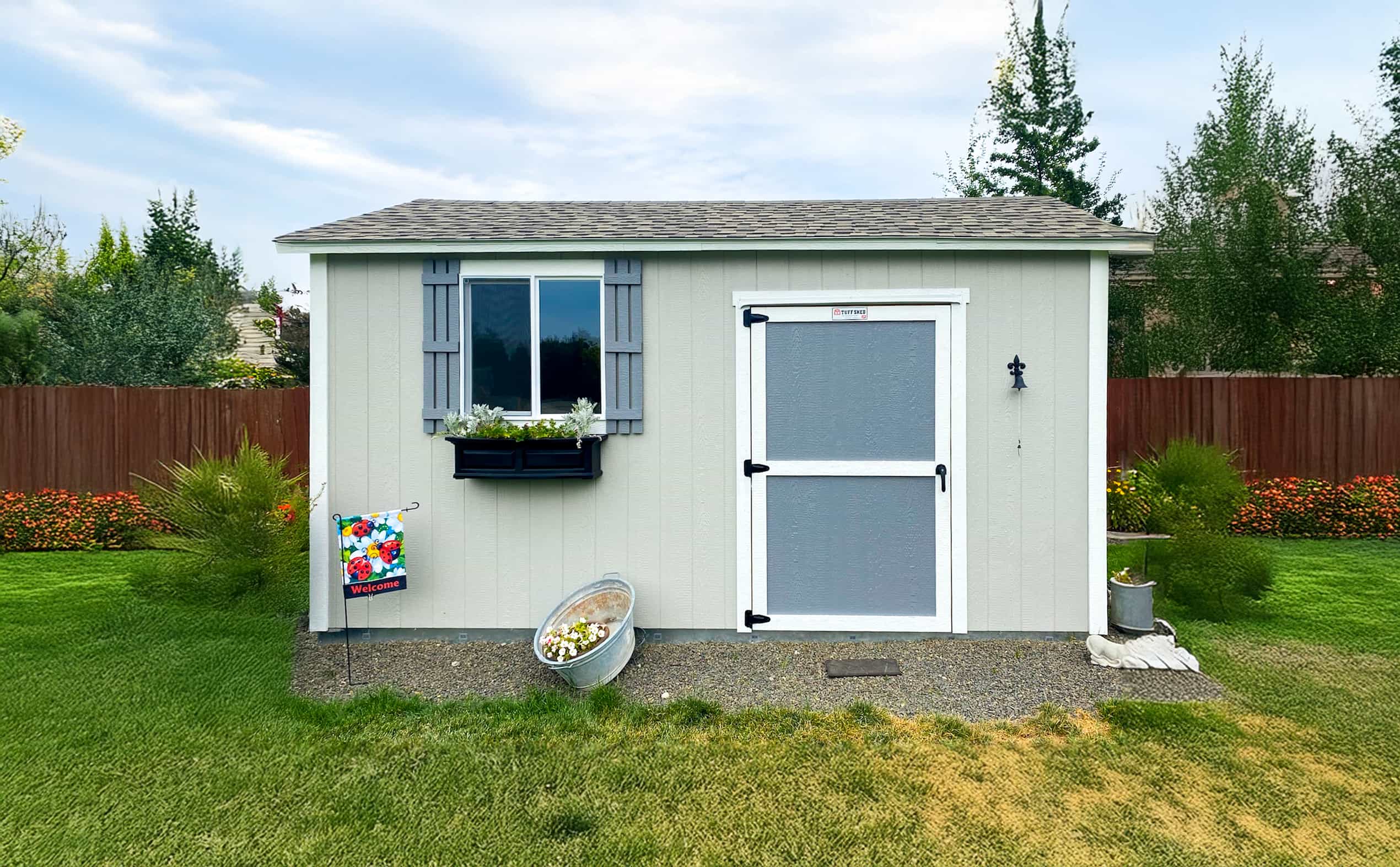

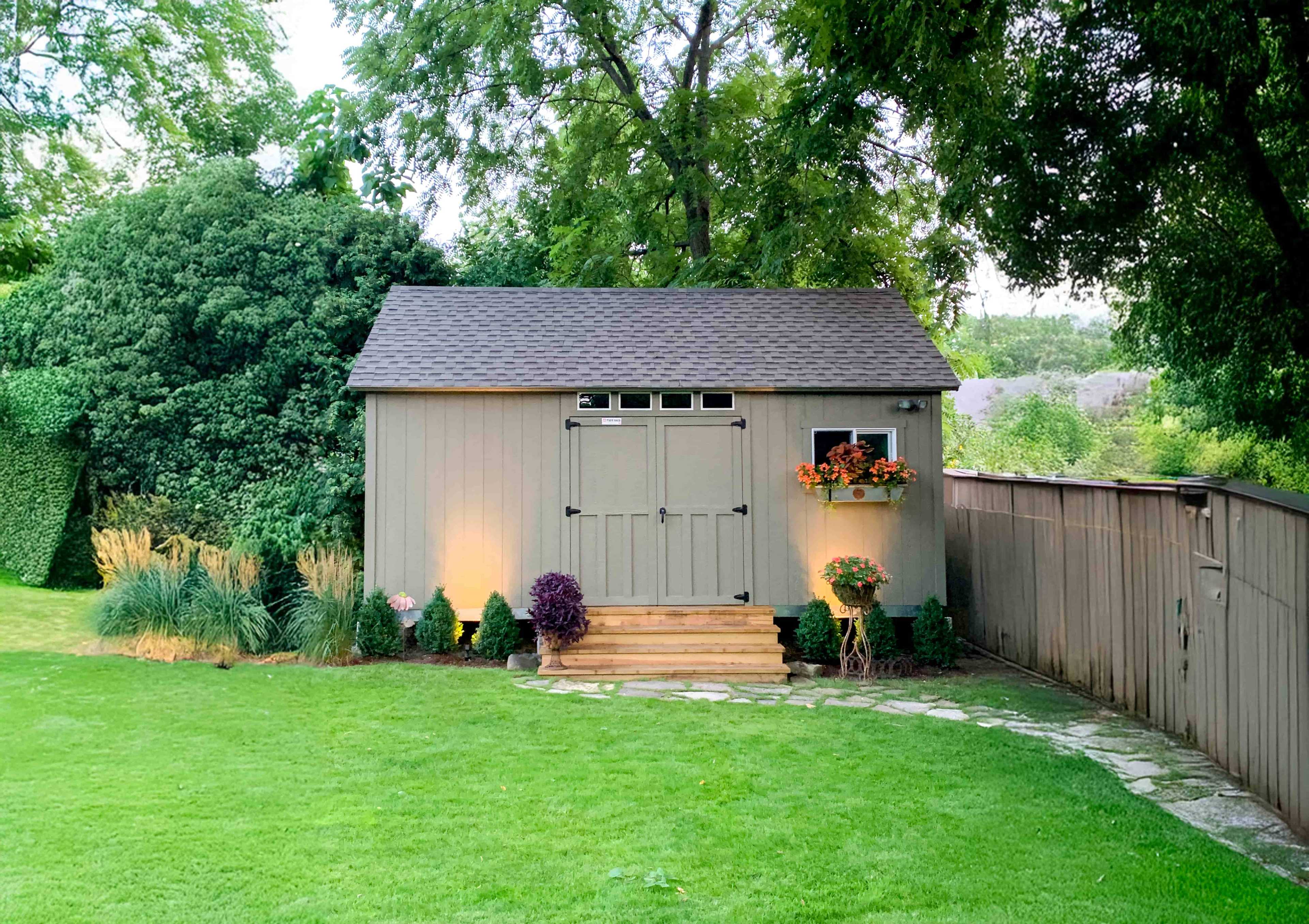

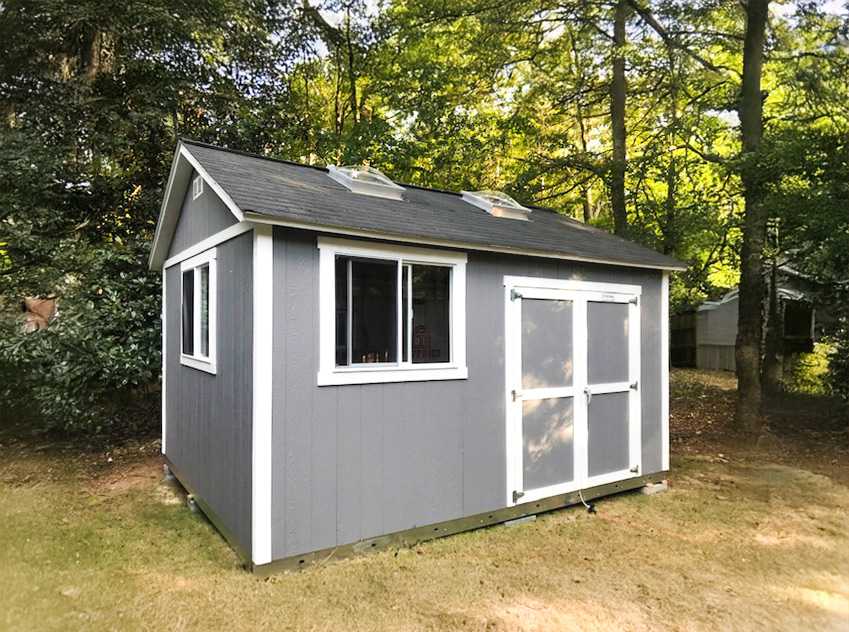

If you need another foot of height on a ranch style building, then the Sundance Series® TR-800 is a great fit. The 8-foot sidewalls translate into more headroom, more room to hang tools on the wall, and even room to add an optional small overhead loft. Another benefit of the taller sidewalls is the taller door that comes standard on the TR-800. The 6’7″ steel-reinforced and patented door can be placed on an end wall or a sidewall.
*Buildings shown here with optional upgrades. Availability of specific upgrades may vary by region.
Slide 1 of 7

| Feature | Specification |
|---|---|
| Warranty |
Slide 1 of 7

| Feature | Specification |
|---|---|
| Warranty |
| 5-year |
| 5-year |
| Floor Joist System | 2x6 Galvanized Steel |
| Floor Joist System | 2x6 Galvanized Steel |
| Floor Decking | 3/4" interlocking premium OSB floor decking |
| Floor Decking | 3/4" interlocking premium OSB floor decking |
| Door Type and Size | 4' x 6' 7" steel reinforced shed door placed on any wall |
| Door Type and Size | 4' x 6' 7" steel reinforced shed door placed on any wall |
| Door Hardware | Patented 5.5" locking handle and 3 ultra heavy-duty hinges |
| Door Hardware | Patented 5.5" locking handle and 3 ultra heavy-duty hinges |
| Aluminum Threshold at Door | 3" deep shed door threshold included |
| Aluminum Threshold at Door | 3" deep shed door threshold included |
| Interior Clear Sidewall Height | 7'8" |
| Interior Clear Sidewall Height | 7'8" |
| Wall Framing | 2 x 4 studs spaced 16" on-center |
| Wall Framing | 2 x 4 studs spaced 16" on-center |
| 2 x 4 Wall Top Plates | 2 plates on all walls |
| 2 x 4 Wall Top Plates | 2 plates on all walls |
| Siding Type | LP® SmartSide w/50-Year warranty |
| Siding Type | LP® SmartSide w/50-Year warranty |
| Trim Type | LP® Smart Trim w/50-Year warranty |
| Trim Type | LP® Smart Trim w/50-Year warranty |
| Roof Type | Gable (Ranch) Style |
| Roof Type | Gable (Ranch) Style |
| Roof Pitch at Peak | (4/12) |
| Roof Pitch at Peak | (4/12) |
| Roof Decking | 7/16" premium OSB roof decking |
| Roof Decking | 7/16" premium OSB roof decking |
| Rafters and Trusses | 2 x 4 rafters joined w/ steel plates |
| Rafters and Trusses | 2 x 4 rafters joined w/ steel plates |
| Colored, Baked Enamel Drip Edge | Included on perimeter of roof |
| Colored, Baked Enamel Drip Edge | Included on perimeter of roof |
| Roofing Underlayment | Included |
| Roofing Underlayment | Included |
| GAF Shingles | 3-Tab Shingles with 25 Year Warranty |
| GAF Shingles | 3-Tab Shingles with 25 Year Warranty |
| Eave Type | 6" block eave on sidewall |
| Eave Type | 6" block eave on sidewall |
| On-Site Installation Included | Yes |
| On-Site Installation Included | Yes |
